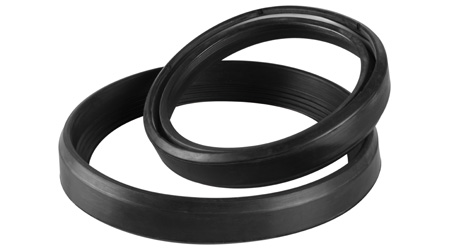

Aramid Fabric Reinforced Seals: The Ultimate Solution for High-Pressure and High-Wear Resistance

In extreme sealing environments involving high pressure, high speed, and severe wear, ​Aramid Fabric Reinforced Seals​ serve as a critical defense line. By combining high-strength aramid fibers with oil-resistant rubber, these seals deliver unparalleled anti-extrusion and anti-wear performance in rotating shafts, reciprocating pistons, and valve applications. Below is an in-depth analysis of their core properties:

​Core Structure: Synergy of Rigidity and Flexibility​

The ​​"sandwich structure"​​ (rubber matrix-reinforcement fabric-rubber matrix) enables breakthrough performance:

• ​High-Strength "Skeleton": Aramid Fabric Layer​

  • Extrusion Resistance: Aramid fibers (e.g., Kevlar®) offer 5× the strength of steel (>3000 MPa) with 70–200 GPa modulus.
  • Temperature Resistance: Continuous use at 200°C (peak 230°C), outperforming synthetic fibers.
  • Self-Lubrication: Friction coefficient as low as 0.1–0.2 (steel-on-steel).
  • Wear Resistance: 10× more durable than nylon, 5× better than polyester.

• ​Flexible "Muscle": Rubber Matrix​

  • Elastic Sealing: NBR, FKM, or HNBR provides initial preload sealing.
  • Media Compatibility: Customizable for fuel/acid/solvent resistance.

• ​Synergistic Effects​

  • Fabric restrains rubber extrusion; rubber protects fabric from wear.
  • Dual sealing: Elastic preload + fiber barrier.

​Performance Comparison Table​

​Key Applications​

1. ​Heavy-Duty Hydraulics (>50 MPa)​​
   • Excavator/cylinder piston seals.
   • Blowout preventers (105 MPa case study, deformation <0.3 mm).
2. ​High-Speed Rotation (>15 m/s)​​
   • Wind turbine yaw bearings, centrifugal pump shafts (wear 1/8 vs. PTFE).
3. ​Extreme Valves​
   • Power plant valves (200°C + 40 MPa).
   • Coal slurry valves (abrasion resistance).
4. ​Specialized Equipment​
   • Aircraft landing gear (40% lighter than metal).

​Design & Maintenance​

• ​Structure Optimization​

  • ​45° Cross-Ply: 200% higher extrusion resistance.
  • ​Graded Density: 4–8 layers in high-pressure zones.

• ​Rubber Matrix Selection​

  ​Condition​	Recommended Rubber	Properties
  Fuel (>150°C)	FKM	Chemical resistance
  Lubricant (135°C)	HNBR	Low compression set
  Water-glycol	EPDM	Hydrolysis resistance

• ​Failure Prevention​

  ​Failure Mode​	Cause	Solution
  Delamination	Rubber-fabric bond failure	Use thermo-vulcanization
  Fiber fraying	Over-compression (>30%)	Limit to 15–25%
  Groove wear	Contamination	Add 80μm pre-filter

​Conclusion:​​
Aramid fabric seals achieve the impossible through ​​"rigidity against pressure, flexibility against wear"​:

• Withstand >80 MPa hydraulic systems.
• Operate at 30 m/s with self-lubrication.
• Extend service life 5–10× in abrasive media.
  Despite costing 3–8× more than standard seals, they remain the ​​"ultimate line of defense"​​ in offshore drilling, wind turbines, and heavy machinery, continually redefining pressure and speed limits.
