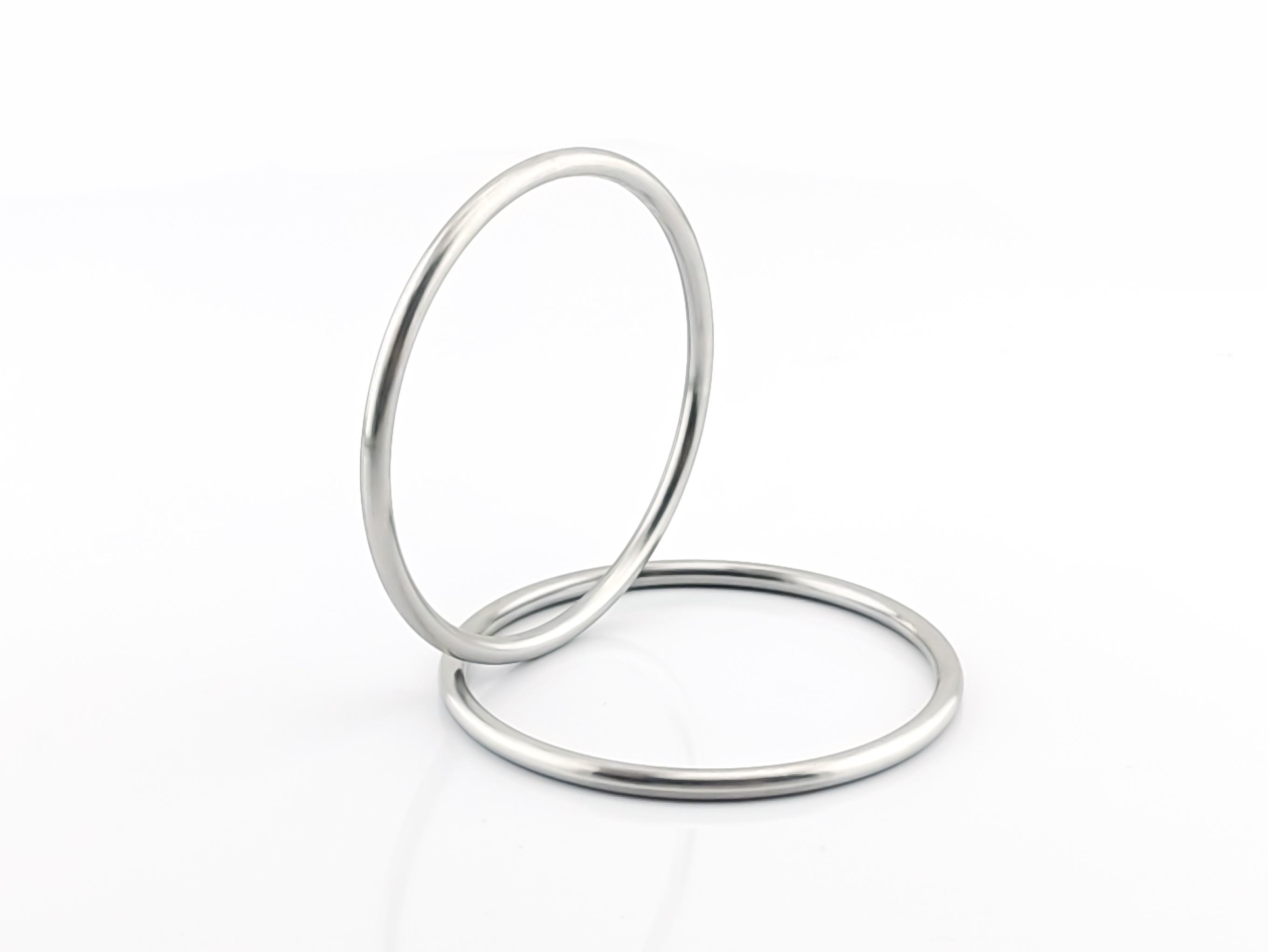

High-Temperature Vacuum Sealing Materials Selection Guide (400-500°C)

Under dual attacks of 400-500°C heat and high vacuum (≤10⁻³ Pa), conventional seals fail catastrophically – rubber carbonizes, metal creeps, outgassing contaminates chambers. This article reveals ​why only specialty materials work, with cost-benefit and engineering truths exposed.

​I. Why Specialty Materials are Non-Negotiable​

​1. Three Killers of Conventional Materials​

• ​Organics (Rubber/Plastics)​:

  Pyrolyze above 327°C (FFKM limit), outgassing soars to ​10⁻⁵ mbar·L/s​ (1000x over limit).

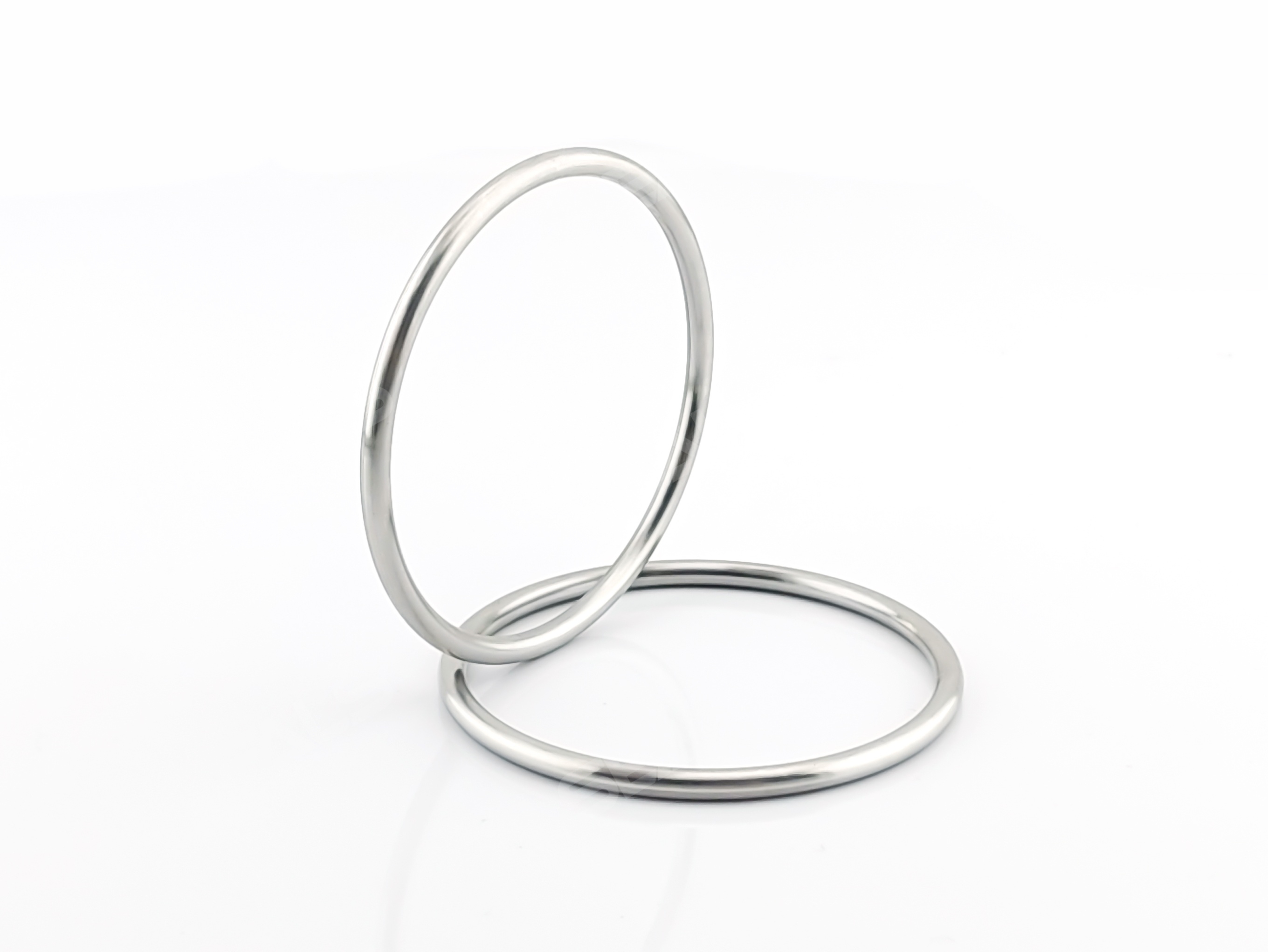

• ​Common Metals (304 SS)​:

  Creep relaxation at 480°C, stress retention <60%.

• ​Standard Graphite Gaskets:

  Oxidize uncontrollably! Mass loss begins at 420°C in air.

​2. Victorious Materials' Decisive Properties​

​Painful Lesson: PV coating plant using 304 SS seals leaked at ​10⁻³ mbar·L/s​ after 72h @480°C, scrapping $2M wafers.

​II. Performance Breakdown​

​1. Metal Bellows Systems​

• ​King of Dynamic Seals: Laser-welded bellows compensate ±5mm thermal shift.
• ​Critical Processes:

  Argon-shielded pulse welding (HAZ<0.1mm) → Vacuum stress relief → Electropolishing (Ra≤0.4μm).

• ​Cost Reality: 1,200−3,000/pc (10x gaskets), but >10yr maintenance-free.

​2. Oxidation-Resistant Graphite Gaskets​

• ​Static Seal Value Champion: SiC additives enable 600°C air tolerance.
• ​Process Keys:

  Graphite foil calendering → ZrP solution impregnation → 1,200°C sintering.

• ​Cost Advantage: 80−300/pc (1/10 bellows), ideal for static flanges.

​III. Installation & Manufacturing Make-or-Break​

​1. Bellows Installation Commandments​

• ​Precision Preload: Torque tolerance <±5% (over-compression crushes bellows):

  Formula: T = 0.2 × d × F (d: bolt dia., F: design load)

• ​Coaxial Alignment: >0.05mm/m offset slashes lifetime 90%.
• ​Bake-Out Mandatory: 48h @200°C pre-bake (per SEMI F47) - skip and contaminate vacuum.

​2. Graphite Gasket Pitfalls​

• ​No Over-Compression: >35% compression fractures graphite (audible "crack" = failure).
• ​Surface Finish: Flange roughness Ra≤1.6μm (mirror finish optimal) - doubles leakage otherwise.

​IV. Total Cost of Ownership Revolution​

* Conditions: 450°C vacuum, 8,000 hr/yr operation
​Conclusion: Bellows TCO is just ​23%​​ of O-rings, with near-zero downtime.

​Engineering Verdict​

• ​Dynamic Seals (Rotation/Movement)​:
  ​Only metal bellows​ (Inconel 625/Haynes 230) - no compromises.
• ​Static Seals (Flanges/Covers)​:
  Prioritize ​oxidation-resistant graphite​ (cost-sensitive), or ​bellows + welded seals​ (zero-leak mission-critical).

​Bleeding-Edge Warnings:

1. Never trial rubber/plastic seals >400°C (even if sold as "HT");
2. Unbaked vacuum systems = ticking bombs;
3. Installation precision dictates 90% of seal life - saving 100onalignmentmaycost1M.

​Final Answer: Seal selection isn't about cost, but ​system survivability. In 400-500°C vacuum hell, only right materials, precision execution, and standards compliance deliver reliable cost-performance equilibrium.
