Internal Pressure-Activated Metallic E-Seal: The Reliable Guardian for High-Pressure Harsh Environments

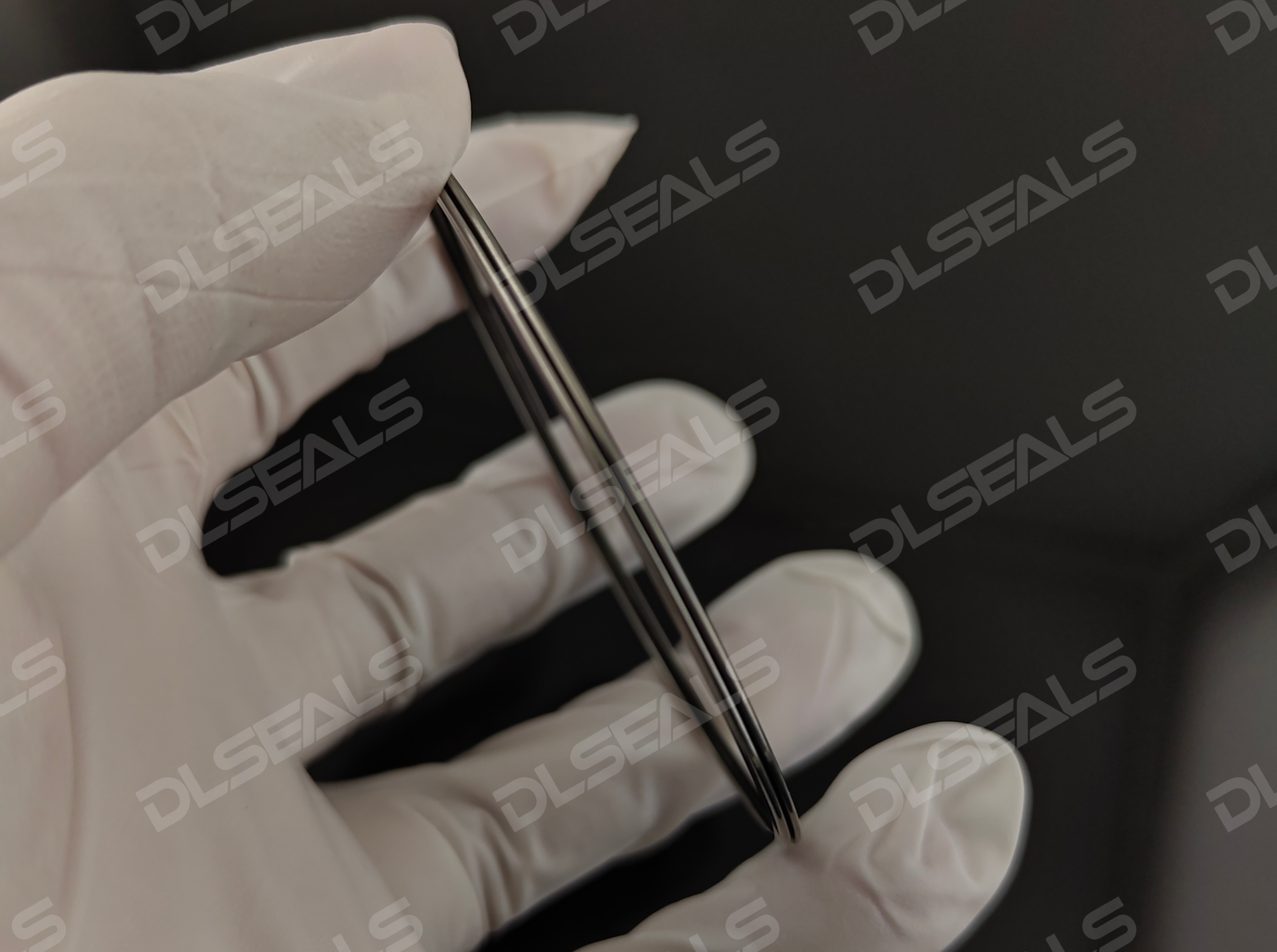

Internal Pressure-Activated Metallic E-Seal

In extreme conditions involving high temperatures, high pressures, and strong corrosion, traditional elastomeric seals often fall short. Metallic seals excel as critical "safety valves" for key equipment. Among them, the Internal Pressure-Activated Metallic E-Seal stands out for its unique structure and performance. This article delves into its structural features, working principles, material choices, and applications.

1. Structural Uniqueness: The Design of the E-Seal
The E-Seal features a distinctive mirror-symmetrical "E" or "M" cross-section (typically with three peaks). Key structural elements include:

"M" Profile: A central groove forms a natural sealing chamber, while dual symmetric peaks serve as primary sealing lips. This groove is critical for self-activation.
Support Structure: Used with concentric inner support rings (or outer constraint rings) to prevent extrusion and channel pressure toward sealing lips.
Metal Core: Made from deformable metal alloys for plasticity.

Structural Differences vs. Other Metallic Seals:

Comparison	Key Distinctions
Solid/Hollow Metal O-Rings	E-Seal’s groove amplifies pressure-to-radial-sealing-force conversion efficiency.
C-Seals	Dual lips and sealed chamber enable faster/stronger pressure-responsive sealing.
Delta Rings	More robust against gap changes; higher efficiency in pressure utilization.

2. Core Mechanism: Pressure-Activation Principle
The E-Seal’s superiority lies in its pressure self-energization:

Preload: Initial bolt tightening plastically deforms lips for primary sealing.
Pressure Intrusion: System pressure enters the central chamber.
Force Transformation: Pressure acts on chamber walls, forcing lips radially outward/inward. Support rings confine displacement, converting pressure into sealing force against flange surfaces.
Bidirectional Sealing: Sealing pressure increases proportionally with system pressure ("tighter under pressure").

3. Performance Advantages

High-pressure reliability (up to 1,000+ MPa).
Extreme temperature resilience (-196°C to 800°C).
Superior corrosion/chemical resistance.
Anti-extrusion (with support rings).
Long service life, reusable (if undamaged).

4. Materials & Properties

Material Category	Examples	Pros	Cons	Max Temp (°C)
Austenitic Stainless Steel	304, 316L	Cost-effective, corrosion resistance	Low strength, SCC susceptibility	600 (long-term)
PH Stainless Steel	17-4PH (630)	High strength, corrosion resistance	Higher cost than austenitic steels	400
Ni-based Superalloys	Inconel 718/X-750	High-temp strength, oxidation resistance	Expensive	800
Ni-based Corrosion Alloys	Hastelloy C-276	Exceptional acid/halogen resistance	Very high cost	400
Special Alloys/Pure Metals	Ti Gr.2, Incoloy 925	Targeted performance (e.g., Ti: lightweight)	Hydrogen embrittlement risk (Ti)	Varies

Support rings use high-strength materials (e.g., hardened steel).

5. Applications
E-Seals are indispensable in:

Oil & Gas: Wellheads (API 6A), Xmas trees, HPHT valves.
Petrochemicals: Hydrocracking reactors, polyethylene units.
Chemical Processing: Supercritical reactors, corrosive media.
Nuclear: Reactor vessel closures, primary coolant loops.
Aerospace: Rocket engine systems, test rigs.
High-Pressure Research: Autoclaves, material synthesis chambers.
