Modified PTFE Sealing Technology: Engineering Breakthroughs in Extreme Performance

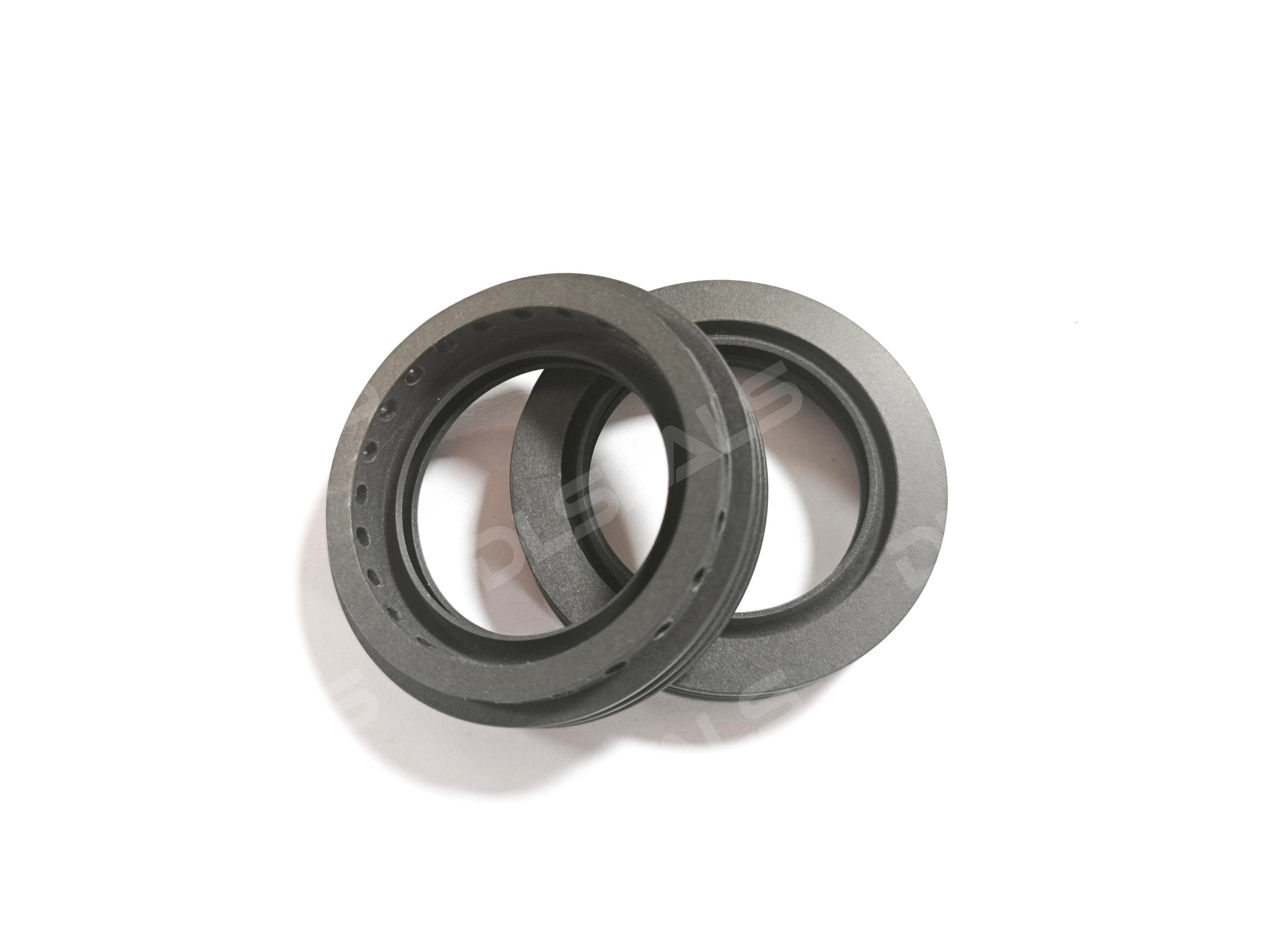

PTFE modified seals

1. Core Modification Technologies

Filler Type	Modification Mechanism	Performance Gains
Carbon Fiber	3D reinforcement network	Compressive strength ↑300% · Wear resistance ↑10x
Graphene	Thermal conductivity pathways	Thermal conductivity ↑15x · μ ↓40%
Nano-ceramics	Crystal gap filling	Hardness ↑220% · Creep resistance ↑400%
Bronze Powder	Reduced thermal expansion	Dimensional stability ↑ · PV limit ↑35%

Process Innovation: Plasma grafting enables covalent bonding between fillers and PTFE chains.

2. Unmatched Advantages

Temperature Range: -200°C to +290°C continuous operation
Self-lubrication: Dynamic μ=0.03 (lubricant-free lifetime service)
Chemical Inertness: Resists 98% H₂SO₄, 40% NaOH; USP Class VI certified
Non-stick Property: Surface energy 18 mN/m (prevents material buildup)

3. Industry Applications

**► Steel Continuous Casting**

Solution: Carbon fiber-reinforced PTFE seals
Result: 6-month service life at 300°C (was 2 weeks)

**► Semiconductor Etching Tools**

Solution: Graphene-modified PTFE seals
Result: 18-month leak-free operation; contaminants <0.1 ppm

4. Technical Selection Guide

Challenge	Optimized Formula	Performance
High-speed rotation (>25 m/s)	Carbon fiber + Nano-MoS₂	PV >5 MPa·m/s
Ultra-high pressure (>70 MPa)	Ceramic fiber reinforcement	Collapse resistance >100 MPa
High vacuum (<10⁻⁶ Pa)	Glass fiber gradient	Outgassing <10⁻⁹ Pa·m³/s·m²

5. Operational Economics

Automotive seal manufacturer case (10M units/year)

Metric	Traditional	Modified PTFE	Improvement
Service life	30,000 km	150,000 km	+400%
Warranty claims	1.8%	0.15%	-92%
Line yield	89%	98.5%	+10.7%
Annual savings	-	$2.3M	-

[DLSEALS kindly Reminder] Sealing issues? Turn to DLSEALS! As a sealing component manufacturer, we specialize in customizing sealing components, providing a full range of services from design, research and development, production, testing, and more. If you have more information you'd like to know, feel free to contact us directly. DLSEALS's product experts are dedicated to serving you!
