In industries such as chemical processing, semiconductors, pharmaceuticals, and high-purity gas systems, conventional elastomer O-rings often suffer from swelling, aging, and compression set when exposed to aggressive chemicals or prolonged service conditions. Standard FEP or PFA encapsulated O-rings improve chemical resistance, but their elastomer cores can gradually lose elasticity under high temperatures and continuous compression.

To overcome these limitations, the Spring Core Encapsulated O-Ring has emerged as an advanced sealing solution that combines the exceptional chemical resistance of fluoropolymers with the long-lasting resilience of a metallic spring core.

---

What Is a Spring Core Encapsulated O-Ring?

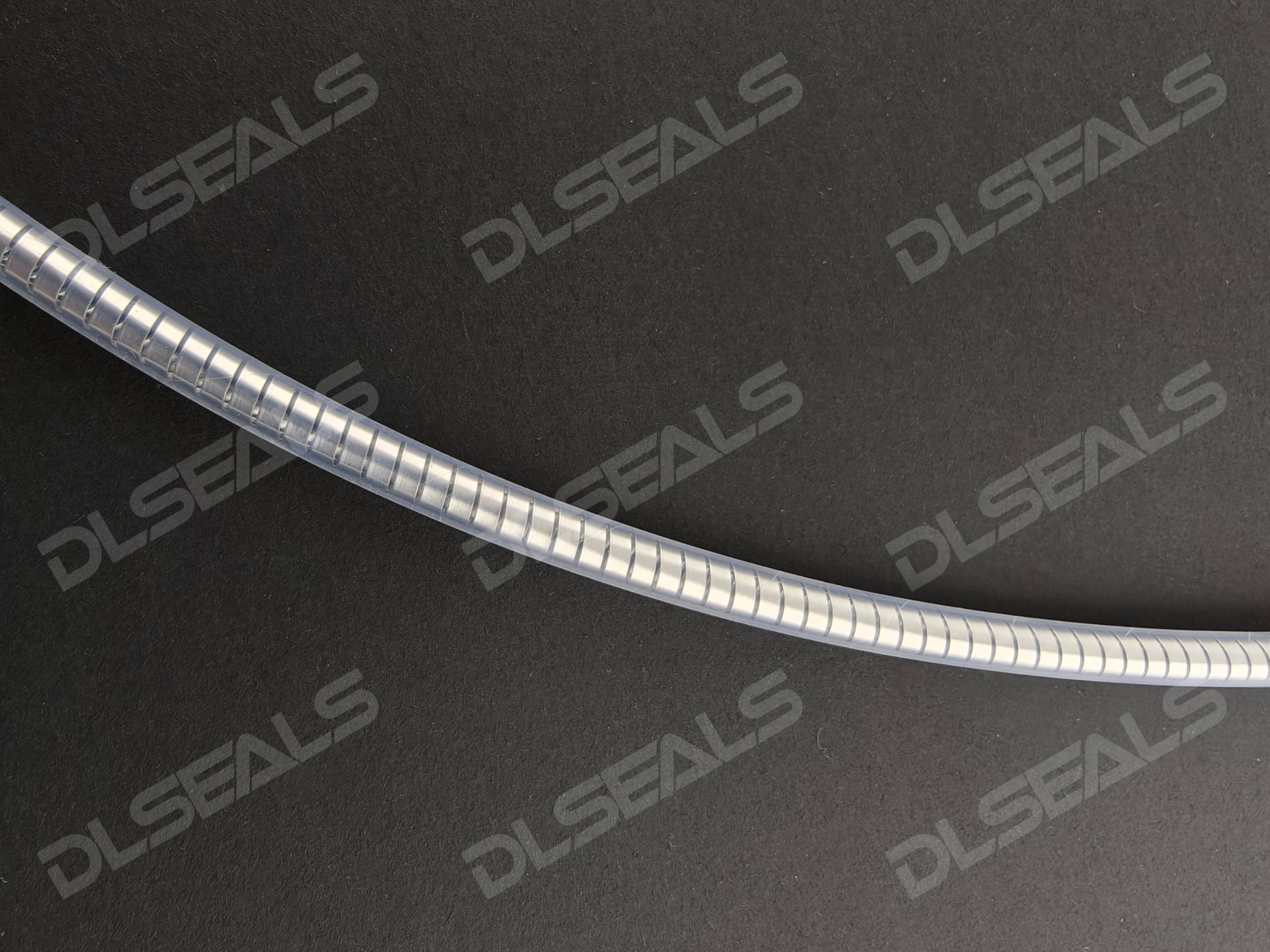

A Spring Core Encapsulated O-Ring is a high-performance sealing element consisting of a metallic helical spring fully encapsulated within a seamless fluoropolymer jacket, typically made from FEP, PFA, or PTFE.

Unlike conventional encapsulated O-rings that use silicone or FKM (Viton®) as the core material, this design utilizes a metal spring to provide continuous elastic recovery and long-term sealing performance.

Typical Construction

Outer Jacket Materials

• FEP (Fluorinated Ethylene Propylene)
• PFA (Perfluoroalkoxy Alkane)
• PTFE (Polytetrafluoroethylene)

Spring Core Materials

• Stainless Steel 304
• Stainless Steel 316L
• Inconel X-750
• Hastelloy Alloys

This unique combination delivers both superior chemical resistance and excellent elastic compensation.

---

How Does a Spring Core Encapsulated O-Ring Work?

During installation, the metallic spring is compressed, generating a continuous radial sealing force that presses the fluoropolymer jacket firmly against the mating surfaces.

Throughout the service life, the spring automatically compensates for:

• Thermal expansion and contraction
• Material creep and cold flow
• Minor wear of sealing surfaces
• Pressure fluctuations

This constant recovery force allows the seal to maintain reliable sealing performance even after long periods of compression, significantly outperforming conventional encapsulated O-rings with elastomer cores.

---

Key Advantages of Spring Core Encapsulated O-Rings

Outstanding Chemical Resistance

Since the process media only contact the fluoropolymer outer jacket, the seal exhibits exceptional resistance to nearly all aggressive chemicals, including:

• Sulfuric acid
• Hydrochloric acid
• Nitric acid
• Caustic solutions
• Organic solvents
• Ultra-pure chemicals

This makes it an ideal sealing solution for highly corrosive environments.

---

Lower Compression Set and Longer Service Life

Traditional encapsulated O-rings rely on elastomer cores, which can gradually lose resilience under continuous compression.

The metallic spring core provides:

• Excellent elastic recovery
• Superior fatigue resistance
• Minimal compression set
• Extended service life

As a result, Spring Core Encapsulated O-Rings are particularly suitable for applications requiring long-term static sealing.

---

Wide Operating Temperature Range

Depending on the selected materials, these seals can typically operate within:

-60°C to +260°C (-76°F to +500°F)

Special material combinations may even withstand intermittent temperatures approaching 300°C (572°F).

---

Excellent Gas and Vacuum Sealing Performance

The continuous sealing force generated by the spring core significantly improves sealing reliability in gas applications, including:

• Nitrogen systems
• Hydrogen systems
• Helium applications
• Vacuum equipment
• High-purity gas delivery systems

---

Reduced Maintenance Costs

Due to their outstanding durability and long service life, Spring Core Encapsulated O-Rings help reduce:

• Equipment downtime
• Seal replacement frequency
• Maintenance expenses
• Total cost of ownership

For critical process equipment, the long-term economic benefits often outweigh the higher initial cost.

---

Spring Core Encapsulated O-Ring vs. Standard Encapsulated O-Ring

---

Typical Applications

Chemical Processing Industry

• Chemical reactors
• Corrosive pumps and valves
• Acid and alkali storage tanks
• Chemical pipeline flanges

Semiconductor Industry

• Ultra-pure water systems
• Wet process equipment
• Chemical delivery systems
• Wafer cleaning equipment

Pharmaceutical and Food Processing Equipment

• Sterilization systems
• Pharmaceutical reactors
• Filling and dosing equipment
• CIP and SIP systems

New Energy Industry

• Hydrogen production equipment
• Electrolyzers
• Energy storage systems
• Specialty gas systems

High-Purity Gas Applications

• Helium systems
• Nitrogen systems
• Vacuum systems
• Semiconductor gas delivery equipment

---

How to Select the Right Spring Core Encapsulated O-Ring

To achieve optimal sealing performance, the following parameters should be considered:

• Operating temperature
• System pressure
• Media compatibility
• Groove dimensions
• Service life requirements
• FDA or food-grade compliance
• Vacuum or high-purity gas applications

Selecting the proper combination of fluoropolymer jacket and spring material is essential for maximizing sealing reliability and service life.

---

Conclusion

The Spring Core Encapsulated O-Ring represents a significant advancement over conventional encapsulated O-rings. By replacing the elastomer core with a metallic spring, it effectively eliminates problems associated with compression set and loss of elasticity while maintaining the exceptional chemical resistance of FEP, PFA, and PTFE materials.

For industries requiring long-term reliability, aggressive chemical resistance, and minimal maintenance, Spring Core Encapsulated O-Rings provide an ideal sealing solution that enhances equipment performance, extends service life, and reduces overall operating costs.
