Technical Evolution and Engineering Value Analysis of Guide Bands: The Invisible Backbone of Hydraulic Systems

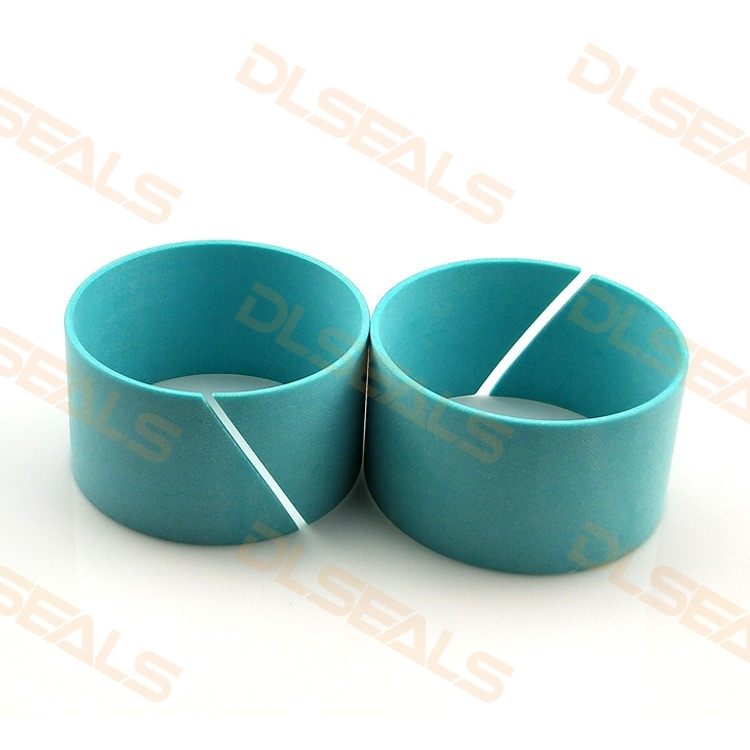

guide strip

Abstract: As core supporting components of hydraulic cylinders, guide bands critically impact equipment reliability. This paper analyzes how engineering plastic guide bands resolve failure issues inherent to metal guide sleeves based on material mechanics and tribology principles, with industrial cases validating lifecycle economics.

1. Functional Positioning: An Underestimated Critical Component

1.1 Triple Core Functions

Load support: Withstands 15%-30% lateral force from piston rods (equivalent axial pressure >10MPa)
Motion control: Ensures piston rod straightness error <0.1mm/m
Friction management: Maintains dynamic friction coefficient of 0.05-0.12 (vs. metal's 0.15-0.25)

1.2 Typical Failures of Metal Guide Bands (Based on 288 Maintenance Reports)

Failure Mode	Ratio	Root Cause
Adhesive wear	42%	Lubricant film rupture causing metal adhesion
Corrosion failure	31%	Moisture/acid mist infiltration
Fatigue spalling	19%	Micro-crack propagation under cyclic loads
Abrasive scoring	8%	Contaminant particles embedding

2. Material Breakthrough: The Rise of Engineering Plastics

2.1 Performance Comparison of Three Major Materials

Parameter	Modified PTFE	POM	Fiber-Reinforced TPV
PV limit (MPa·m/s)	0.8	1.2	3.5
Thermal expansion (10⁻⁶/K)	120	85	45
Water absorption (24h)	<0.01%	0.25%	0.02%
Chemical resistance	Acids/Alkalis	Halogen vulnerability	pH3-11 media

Note: Reinforced TPV refers to ExxonMobil Santoprene™ 8231 (40% glass fiber fill)

2.2 Structural Innovations

Split clasp design: Reduces installation from 6h to 20min
PTFE composite layer: 40% lower friction vs pure POM
Microporous oil reservoir: >15% oil content extends relubrication cycles 3x

3. Industrial Validation: Value Through Data

3.1 Injection Molding Machine Test (2-Year Tracking)

Metric	Bronze Guide	Fiber-Reinforced TPV	Improvement
Annual replacement	3.8 times	0.4 times	89.5%
System energy (kWh/y)	31,200	26,500	15.1%
Leakage failure rate	17%	<1%	94%

3.2 Port Crane Application

Challenge: Sea air corrosion causing 5x annual replacements
Solution: Sealed TPV guide band (SE 9230)
Economic benefit:
- 76% lower parts cost (￥93,000/year saved)
- 84% less maintenance time (200h/year freed)
