In demanding sealing applications involving rotation, oscillation, and reciprocating motion where high performance and reliability are critical, one uniquely structured sealing element stands out: the V-shaped Fabric-Reinforced Seal (also commonly known as V-ring packing, V-seal, or V-Pack seal). Its exceptional sealing performance and outstanding extrusion resistance make it a core sealing solution in industrial sectors, particularly in construction machinery and hydraulic equipment.
Structural Essence of V-Shaped Fabric-Reinforced Seals
The secret to the V-seal’s effectiveness lies in its sophisticated laminated composite structure:
- Core Skeleton: High-Strength Fabric Layer: Typically made of high-quality, resin-impregnated cotton or synthetic fabric (e.g., nylon, polyester). This fabric layer isn't just filler; it's precision-laminated and thermoset, providing critical high strength, low compression set, and superior dimensional stability. It acts as a rigid backbone, effectively resisting extrusion under high pressure.
- Sealing Powerhouse: Elastomeric Lip: Surrounding the fabric core, rubber or polyurethane elastomer forms the V-shaped sealing lip. This is the dynamic sealing interface that establishes an impermeable barrier between moving parts. Elastomer selection (e.g., NBR, FKM, HNBR) can be tailored to specific environmental demands (temperature, media compatibility).

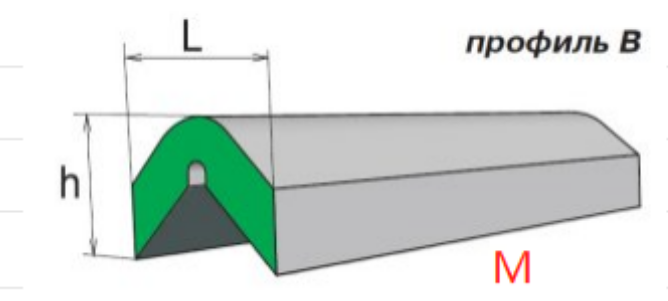

- Distinctive Form: V-Shaped Design: The iconic V-profile isn't merely aesthetic. Its open structure provides automatic compensation:
- Lip Conformity: The lip readily deforms under pressure or contact, ensuring intimate contact with the mating surface.
- Pressure-Actuated Sealing: System pressure pushes against the inner lip face, forcing the V-lips to spread open and grip the shaft or rod more tightly, creating excellent pressure-energized sealing.
Formidable Performance Advantages
V-seals deliver exceptional performance in complex operating conditions:
- Superior Pressure Handling & Extrusion Resistance: The fabric core provides remarkable structural integrity, enabling the seal to withstand extreme internal pressure or severe side loads without crushing or extruding.
- Radial Load & Impact Resistance: The V-shape offers inherent stability. Even with significant shaft/bore deflection, runout, or shock loads, the seal maintains its position effectively.
- Excellent Dynamic Sealing: The elastomeric lip, combined with the V-configuration, ensures stable and reliable sealing in rotating, oscillating, or slow-reciprocating motions.
- Enhanced Durability: The fabric layer ensures stable physical properties, significantly extending service life compared to solid rubber seals.
- Superior Tolerance Compensation: Multiple seals are typically stacked. This allows excellent accommodation of groove machining tolerances and compensates for component wear over time.
- Broad Media Compatibility: The elastomer material can be selected for compatibility with a wide range of demanding media (mineral oils, high/low-temp hydraulic fluids, greases, water, some solvents).
Key Application Areas
Renowned for their stability and pressure tolerance, V-seals are indispensable in critical equipment:
- Construction Machinery Hydraulics: A primary application! Hydraulic cylinder piston rods, bucket/arm cylinders, pump/motor shafts – V-seals reliably handle the high pressures, impacts, and vibrations inherent in these tough environments.
- Mining/Metallurgy Heavy Equipment: Final drives, lifting cylinders – operating conditions are exceptionally severe (high temperature, extreme pressure, intense vibration, heavy contamination). Reliable sealing is crucial for safety and uptime.
- Marine Hydraulics (Steering Gear/Rudders): Must maintain reliable sealing while enduring harsh, wet environments – a task where V-seals excel.
- Large Injection Molding Machines & Precision Metalworking Equipment: Essential for leak-free, high-precision hydraulic actuation.
- Rotary Seals Subject to High Radial/Eccentric Loads: Demonstrate remarkable stability in applications with significant bearing loads and vibration.
Selection & Installation: Critical Details
Successful application depends on careful consideration:
- Operating Conditions Match: Define actual pressure (including peaks), temperature range, surface speed, and media type to select the appropriate fabric and elastomer.
- Correct Installation Direction: The open "V" MUST face the pressurized side! Reversing the seal causes immediate failure and potential damage.
- Precise Groove Design: Groove dimensions (especially critical for the "V" profile) and surface finish are vital. Multiple seals are usually stacked to enhance sealing and create a self-tightening wedge effect.
- Sealing Surface Quality: Mating surfaces (shaft/bore) must meet specified hardness and surface finish (Ra value). Rough surfaces accelerate lip wear.
- Adequate Lubrication: Although dry-running performance surpasses solid rubber seals, proper initial lubrication significantly extends seal life.
The V-shaped Fabric-Reinforced Seal is not merely packing; it's a meticulously engineered sealing guardian. Its flexible elastomer lip dynamically conforms to create a leak-proof barrier, while its robust fabric core provides the rigid support needed to withstand crushing pressure, heavy loads, and harsh impacts. Mastering the balance of resilience and rigidity, this seal stands as an unsung hero on critical sealing surfaces – silently ensuring power transmission integrity, operational safety, and efficient performance. From the cylinders driving an excavator's arm to the rudder joints of a ship, its presence underpins the flawless movement of complex drive systems, safeguarding the precise flow of power.
