Bronze-Filled PTFE Seals: Advanced Wear-Resistant Solution for High-Pressure & High-Speed Applications

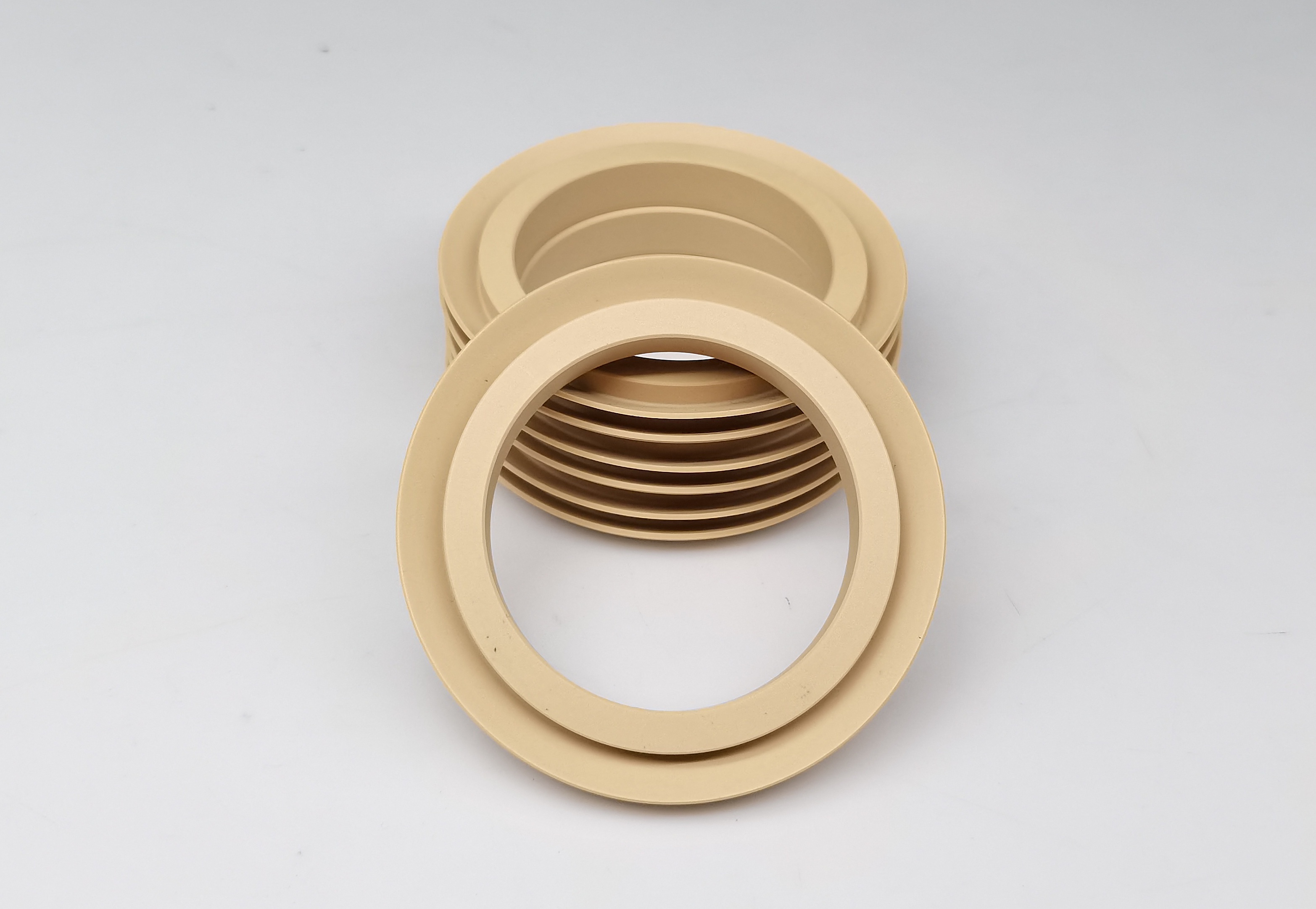

Bronze-Filled PTFE Seals

Material Design Principles

The CuSn6 bronze-PTFE composite achieves synergistic performance:

Component	Function	Mechanism
PTFE Matrix	Chemical inertness / Low friction (μ=0.02–0.1)	Molecular chain slippage
Bronze (25–40%)	Thermal conductivity ↑800%	Metallic heat network (k=4.5 W/m·K)
Graphite (5%)	Boundary lubrication	Transfer film formation

Performance Breakthroughs

(ASTM D3702 / ISO 11014 Test Data)

Parameter	Pure PTFE	25% Bronze	40% Bronze
Thermal Conductivity	0.25 W/m·K	2.1	4.5
PV Limit	0.5 MPa·m/s	0.85	1.2
CTE (×10⁻⁶/K)	120	45	25
Hardness (Shore D)	55	68	72
Wear (mg/1000 rev)	35	9	5

Key Advantages:

Heat dissipation: 60% shorter thermal path prevents PTFE melting (>150°C)
Dimensional stability: CTE matches metals (steel CTE=11.5×10⁻⁶/K)
Wear resistance: Bronze particles bear 60% load

Innovative Structure

Triple-Gradient Sealing System (>20 MPa):

[Primary Seal]  ┌─40% Bronze ┐ → Pressure/thermal load
                ├─25% Gradient┤ → Stress buffering
[Flexible Zone] └─Pure PTFE ┘ → Deformation compensation

Dynamic Sealing Mechanism:

Low pressure: PTFE layer compensates gaps (18–22% compression)
High pressure: Bronze-rich layer resists extrusion (<0.03 mm gap)
Pulsating loads: Bronze network absorbs vibration (↓80% fretting wear)

Extreme Condition Applications

Application	Solution	Verification
Wind turbine pitch cylinders	30% bronze PTFE step seals	PV=0.9 MPa·m/s at -50°C
Injection molding units	Dual-gradient glide rings	>150k cycles @ 230°C
Ship rudder systems	Bronze-PTFE + 304SS backing	Zero corrosion @ 35MPa seawater

Hydraulic System Test Data (35 MPa):

Metric	NBR Seal	Bronze-PTFE	Improvement
Leakage	23.5 ml/min	0.8	↓96%
Breakaway friction	4500 N	1200	↓73%
Service life	1,800 h	12,000	↑567%

Manufacturing Process

Gradient Compaction:

Powder layering: 40%→25%→0% bronze gradient
Cold pressing: 30 MPa @ 80°C (prevents PTFE fibrillation)
Step sintering:
- Stage 1: 300°C×2h (stress relief)
- Stage 2: 380°C×4h (molecular diffusion)

Surface Engineering:

Plasma etching: 15–20% surface porosity
Vacuum impregnation: PFAE fluorolube infusion

Selection Guidelines

Condition	Recommended	Avoid
Pressure fluctuations	≥30% bronze + anti-extrusion ring	Unreinforced PTFE
>200°C operation	≥40% bronze layer	<15% bronze content
Abrasive media	≥70 Shore D surface	Untreated surfaces
>1 m/s reciprocation	3–5% graphite addition	Dry running conditions

Next-Generation R&D:

Smart seals: Embedded FBG sensors for contact stress monitoring
Biomimetic structures: Honeycomb bronze skeleton (↓30% weight)
Nano-coatings: WS₂/MoS₂ multilayer films (μ↓ to 0.01)
