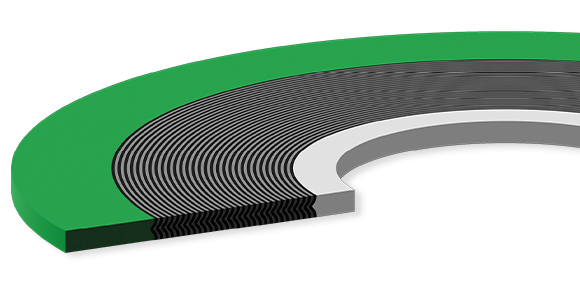

Monel Wire Mesh Reinforced Conductive Silicone Gasket: A High-Reliability Solution for EMI Shielding and Environmental Sealing

Modern aerospace, defense electronics, telecommunications infrastructure, and high-frequency medical equipment continue to increase in component density and operating frequency. As electronic systems become more sophisticated, engineers face two critical challenges: electromagnetic interference (EMI) and environmental sealing against moisture, dust, and other contaminants.

Although conventional conductive elastomers filled with conductive particles provide balanced performance, they often suffer from filler migration, increased electrical resistance, and mechanical deformation under severe vibration, repeated compression, or frequent maintenance cycles.

The Monel Wire Mesh Reinforced Conductive Silicone Gasket (Oriented Wire in Silicone Gasket) was specifically developed to deliver superior EMI shielding together with long-term environmental sealing in demanding operating conditions.

Material Composition and Structural Design

High-Performance Silicone Elastomer

The gasket matrix is typically manufactured from high tear-strength silicone rubber or fluorosilicone rubber. These materials provide excellent flexibility over a temperature range of -55°C to +200°C, outstanding weather resistance, low compression set, and reliable sealing against dust, water, and moisture.

Monel Alloy Wire (Monel 400)

The conductive framework consists of Monel 400 alloy, containing approximately 67% nickel and 30% copper, with small amounts of iron and manganese.

Its primary advantages include:

• Excellent electrical conductivity for EMI shielding
• High mechanical strength and toughness
• Outstanding corrosion resistance
• Exceptional resistance to salt spray and harsh chemical environments
• Superior electrochemical stability compared with copper or aluminum wire

These properties allow the gasket to maintain stable electrical performance throughout long-term service.

Vertically Oriented Wire Structure

Unlike conventional conductive silicone filled with dispersed conductive particles, this gasket utilizes thousands of fine Monel wires arranged perpendicular to the sealing surface.

When compressed, each wire establishes a direct metal-to-metal contact between the mating surfaces, creating numerous low-resistance conductive paths while the surrounding silicone maintains continuous environmental sealing.

This unique structure enables excellent electrical conductivity without sacrificing mechanical elasticity.

Performance Characteristics

Performance	Typical Capability
EMI Shielding Effectiveness	Typically 60–100 dB across a wide frequency range (20 kHz–10 GHz)
Contact Resistance	Extremely low and remains stable even under vibration
Environmental Protection	IP65 to IP68 when properly compressed
Corrosion Resistance	Excellent compatibility with aluminum housings such as 6061 aluminum, minimizing galvanic corrosion

Manufacturing Process

Manufacturing Monel wire reinforced conductive silicone gaskets requires highly controlled production techniques.

Wire Preparation

Fine Monel wires are aligned and woven into precision wire mesh with controlled density.

Silicone Impregnation

Multiple wire mesh layers are vacuum impregnated with uncured silicone rubber, ensuring complete filling of all gaps between the wires.

Compression Molding and Vulcanization

The composite structure is molded and vulcanized under carefully controlled temperature and pressure to permanently bond the silicone and wire mesh into a solid block.

Precision Slicing and Finishing

The cured block is sliced perpendicular to the wire orientation to the required thickness. Surface silicone is then carefully removed so that the wire ends are slightly exposed, allowing optimal electrical contact.

Design and Installation Guidelines

Recommended Compression

Proper compression is critical for both EMI shielding and environmental sealing.

• Recommended compression: 10–20%
• Insufficient compression may result in poor electrical contact and inadequate sealing.
• Excessive compression (>25%) can permanently deform the wire structure and damage the mating surfaces.

Groove and Surface Design

For groove-mounted applications, sufficient expansion space must be provided for the silicone. The groove cross-sectional area is generally recommended to be approximately 10% larger than the gasket cross-section.

The mating metal surfaces should be conductive plated or treated rather than painted with insulating coatings. A surface roughness of Ra 1.6–3.2 μm is generally recommended to optimize metal-to-metal contact.

Typical Applications

Typical industries include:

• Military radios and radar enclosures
• Aerospace electronic equipment
• Outdoor telecommunications base stations
• Industrial control cabinets
• Rugged industrial computers
• High-frequency medical equipment
• EMC-protected electronic enclosures

These applications require long-term EMI shielding together with reliable sealing against water, dust, vibration, and corrosion.

Conclusion

Monel Wire Mesh Reinforced Conductive Silicone Gaskets combine the excellent corrosion resistance and electrical conductivity of Monel alloy with the elasticity and sealing performance of silicone rubber.

Thanks to their unique vertically oriented wire construction, they provide stable low-resistance electrical contact, outstanding EMI shielding, and reliable environmental sealing simultaneously. For aerospace, military, telecommunications, and other mission-critical industries, they remain one of the most dependable EMC sealing solutions available.
